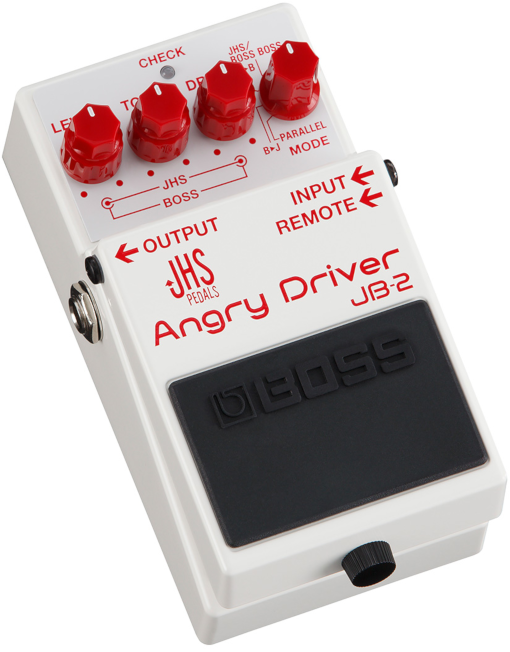

Overdrive
Combines the sounds of the BOSS BD-2 Blues Driver & the Angry Charlie by JHS Pedals
3 Double-turn controls for independent control of drive, tone and level with each overdrive type
Mode switch to select the Overdrive type
Two serial connections for stacked sounds or parallel connection
Extra mode switches between BOSS and JHS overdrives. (integrated pedal switch)
Connection for optional foot switch or external effect switcher for remote control of pedal modes and bypass
Multi-colour LED: BOSS mode (blue), JHS mode (red) Combined mode (purple)
Input: 6.3 mm jack
Remote input: 6.3 mm jack
Output: 6.3 mm jack
Power supply connection (coaxial socket 5.5 x 2.1 mm – negative pin inside)
Power consumption: 50 mA
Power supply with 9 V battery or via 9 V DC power supply
Dimensions (W x D x H): 73 x 129 x 59 mm
Weight: 440 g
5 years BOSS warranty
