Looper
6 Simultaneous stereo phrase tracks
9 Individually assignable footswitches and 3 pedal modes
49 Input FX and 53 track FX types, 4 of which can be used simultaneously
Time-based effects can be automatically synchronised with rhythms and loop tempo
99 Memory locations
200 Onboard rhythm patterns and 16 drum kits
USB for data backup, phrase import/export with BOSS Tone Studio and pattern import with RC Rhythm Converter
Controls: CTL 1-4 and Output Level
Push buttons: Menu, Loop, Rhythm, Tap Tempo, Exit, Enter (together: Write), Page Up/Down (together: Lock)
LED: A, B & C Rec/Play, A,B & C Stop, Track Select, Undo/Redo, all Start/Stop, round Loop Status Indicator, Rhythm, Tap Tempo
Graphic backlit LC display with 128 x 64 pixels
Footswitches: A, B & Rec/Play, A, B & C Stop, Track Select (FX: Hold), Undo/Redo (half speed), All Start/Stop (Reverse)
Power consumption: 1200 mA
Power supply via 9 V DC mains adapter (included)
Dimensions (W x D x H): 435 x 163 x 66 mm
Weight: 2.4 kg
Incl. mains adapter

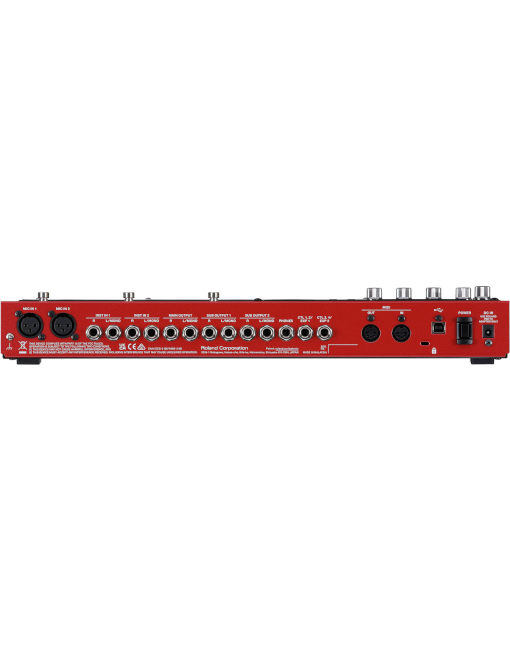

Mic inputs 1 & 2: 2x XLR
Mono/stereo instrument inputs 1: 2x 6.3 mm jack
Mono/stereo instrument inputs 2: 2x 6.3 mm jack
Mono/stereo main outputs: 2x 6.3 mm jack
Mono/stereo sub outputs: 2x 6.3 mm jack
Headphone jack: 6.3 mm stereo jack
CTL 1, 2/Exp 1: 6.3 mm stereo jack
CTL 3, 4/Exp 2: 6.3 mm stereo jack
MIDI In/Out
USB type B
Mains adapter connection: Hollow female plug 5.5 x 2.1 mm – negative pole inside
